Live streaming

Video switcher, audio mixer and more combined in one innovative streaming solution. The all-in-one AV mixers from Roland Professional A/V combine the functionalities of a high-resolution AV studio and can be conveniently operated by a single person. The portable AV mixers are perfect for use in schools, town halls, corporate events, workshops, as well as at any live event or directly at home.

Intuitive operation

Audio/video innovation

Professional picture and sound quality

Real-time interaction

Live streaming and events

Optimised workflow

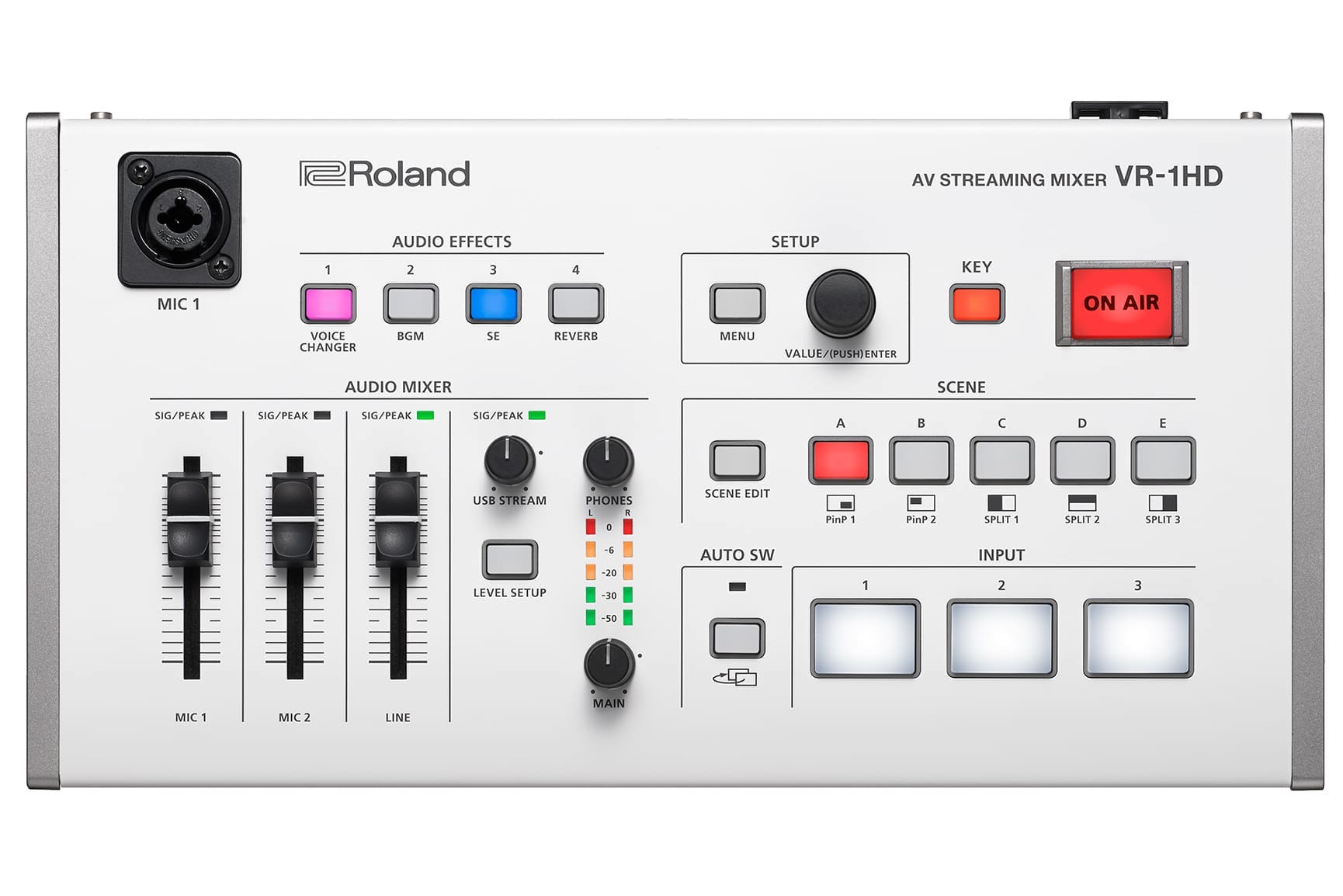

VR-1HD - AV Streaming Mixer

For real-time interaction with the plug-and-play ‘broadcast studio’

With the Roland VR-1HD, dynamic live streams can be produced with multiple cameras in a picture and audio quality that far surpasses conventional streams via a smartphone or webcam. Whether you are a producer, gamer, commentator or presenter - it has never been easier to create professional live streams. Different sources, including cameras, presentations, gameplays and even smartphones or tablets, can be easily connected, switched and streamed.

Dynamic live streams with multiple cameras
Real-time ‘plug and play’ transmission studio
Three HDMI inputs with a variety of HD and computer video resolutions
Easily connect, switch and stream different sources, including cameras, presentations and even smartphones
Two XLR microphone inputs
Line input
Controls for live broadcasts
Microphone input on the top of the housing
Editing software with layering options
Five preset buttons
Three auto-switching modes
Beat Sync Switching
Auto Scan: switch between individual sources randomly or in a predefined sequence
Auto-mixing function: Automatically control audio processing
Transmission tools: Equalisers (to shape the sound character), gates (to mute open microphones until someone speaks into them), compressors (to compensate for volume differences)
Simple connection to the computer via USB 3.0

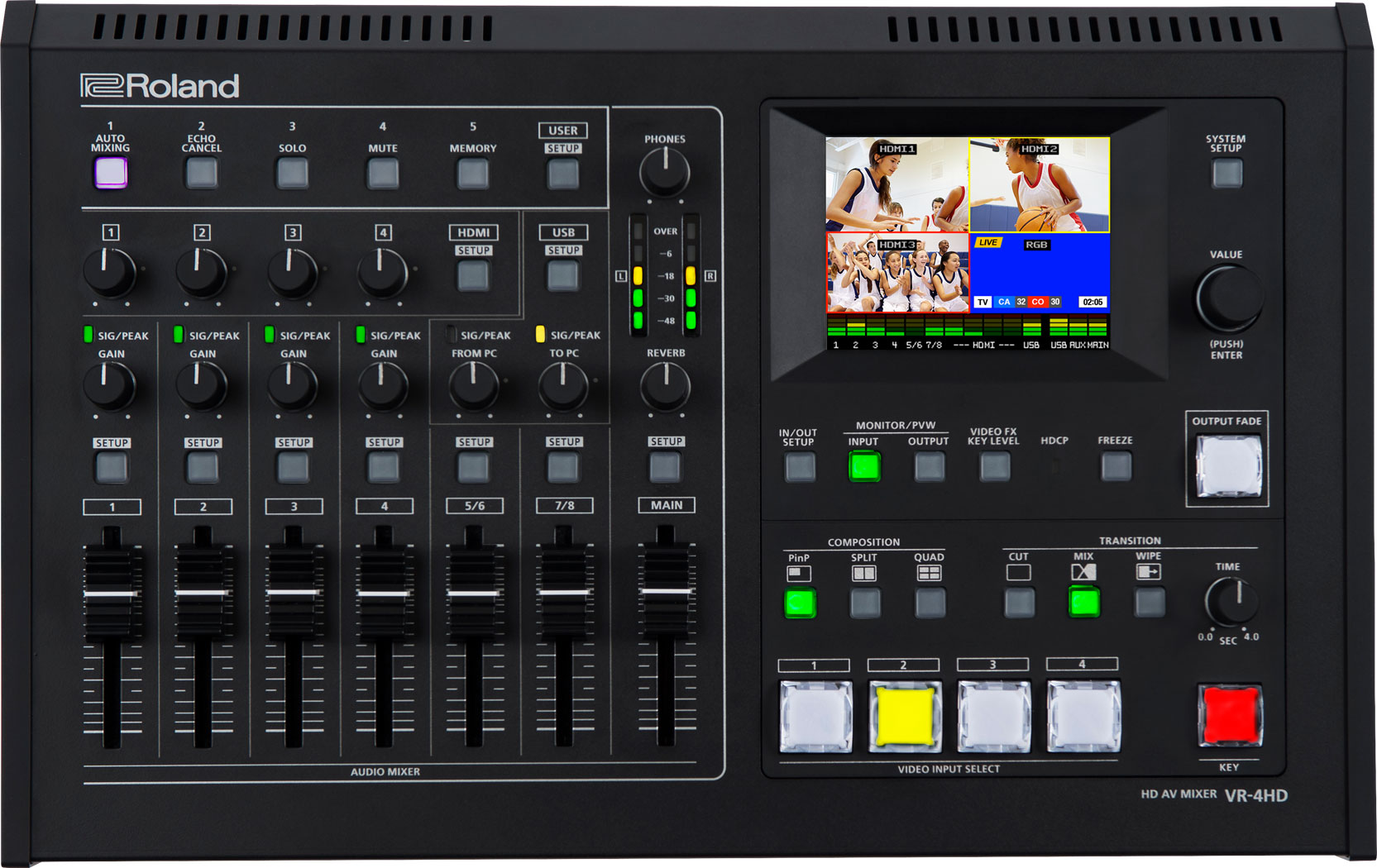

VR-4HD - HD AV Mixer

Web streaming and recording for schools, churches, town halls or live events

The VR-4HD combines a complete HD studio in a compact, portable housing and replaces several complex individual AV equipment devices. The VR-4HD enables simple, intuitive video switching and audio mixing with the aid of digital signal processing (DSP), faders and buttons as hardware control options, as well as a touch screen. Control options and switches in professional broadcast quality enable much faster and more precise work than with an interface consisting of a computer, mouse and keyboard.

A complete HD studio in a compact, portable housing
Simple, intuitive video switching and audio mixing
Six inputs
4-channel video switcher
Automated switching modes
18-channel digital audio mixer with XLR, jack and RCA inputs
Auto-mixing, echo cancellation and delay for perfect lip synchronisation
Composition effects including DSK (Downstream Keyer), picture-in-picture, etc.
Integrated 4-way multi-view touchscreen with audio level display
External multi-view output via HDMI
Integrated USB 3.0 port for web streaming and recording
VR-4HD RCS software for complete software control, backup settings and firmware updates

Roland VR-6HD - 6-channel all-in-one AV mixer

Mobile all-in-one centre for business livestreams

The Roland VR-6HD is the ultimate solution for business live streaming events. With innovative AV technologies, ultra-compact size and versatile connectivity, it is ideal for meetings, sales presentations, church services and professional streaming applications. The VR-6HD - 6-channel all-in-one AV mixer integrates video switching, audio mixing and LAN/USB streaming encoder into one optimised unit. With an intelligent user interface, automation tools, one-touch macro sequencing and PTZ camera control, it enables simple and efficient production workflows. A portable all-rounder for first-class live streams.

Roland VR-6HD - 6-channel all-in-one AV mixer

Ultra-compact audio/video mixer with direct streaming encoders
Powerful live automation with sequencing, macros and scene memory locations
Integrated streaming encoders enable the transmission of two live streams with up to 1,080p/60fps each
Record streams directly to an SDXC card for archiving, editing and sharing content
Six 1,080p HDMI inputs with frame rate conversion and real-time scalers
Support for cinema and TV frame rates
Video effects engine with five layers
Five outputs: 3x HDMI, USB-C streaming and an independent direct streaming output
Six selectable output modes: programme, sub-programme, aux, preview, multiview and still view
Digital 28-channel audio mixer with modern effects and signal processors
16 still image memory slots for screen recording or uploading BMP, JPEG and PNG image files via the alpha channel to the internal non-volatile memory
Enhanced live streams by playing sound effects, still images and video sources from an SDXC card
Audio player function with six trigger pads and integrated memory for 16 audio files
Control of six PTZ cameras, compatible with numerous manufacturers and control protocols
4.3‘’ touchscreen with graphical menu
Advanced device control via Bluetooth, USB, RCA and LAN
Remote control software available for iPad, macOS and Windows
Camera tally light: wireless or wired

VR-120HD - 12-channel direct streaming AV mixer

One operator, several groups of spectators

With the VR-120HD Direct Streaming AV Mixer from Roland, live and online productions can be effortlessly carried out by a single operator, without the need for additional external equipment or personnel. This mobile all-rounder offers a variety of audio and video inputs, a generous touchscreen and intuitive controls that provide all the necessary tools for medium-sized productions. Customisable workflows, extensive automation features, remote control of PTZ cameras, one-touch macro sequences and streaming via LAN and USB are just some of the possibilities offered by the VR-120HD mixer. Thanks to the AV mixer from Roland, production becomes even more efficient and versatile.

Roland VR-120HD 12-channel direct streaming AV mixer

Portable audio/video mixer for hybrid events with direct streaming encoders
Powerful live automation with sequencing, macros and scene memory locations
Integrated streaming encoders enable the transmission of two live streams with up to 1,080p/60 FPS each
Record streams directly to an SDXC card for archiving, editing and sharing content
6x 3G-SDI inputs with frame rate conversion & 6x 1,080p HDMI inputs with frame rate conversion and real-time scalers
Support for cinema and TV frame rates
Video effects engine with eight layers
8x outputs: 3x SDI | 3x HDMI | USB-C streaming and an independent direct streaming output
Seven selectable output modes: programme, sub-programme, aux, preview + three multi-view options
Digital 42-channel audio mixer with modern effects and signal processing
16 still image memory slots for screen recording or uploading BMP, JPEG and PNG image files via the alpha channel to the internal non-volatile memory
Enhanced live streams by playing sound effects, still images and video sources from an SDXC card
Audio player function with eight trigger pads and integrated memory for 16 audio files
PTZ control for 12 cameras (supports numerous manufacturers and control protocols)
Advanced device control via Bluetooth, USB, RS-232 and LAN
Remote control software available for iPad, macOS and Windows
Camera tally light: wireless or wired
Large 7‘’ touchscreen with graphical menu

V-160HD - HD streaming video switcher

The new switching standard for hybrid events

The V-160HD from Roland offers numerous professional features as well as comprehensive SDI and HDMI connections, enabling live broadcasts in full HD with simultaneous streaming via USB-C to any known web platform. Roland's video switcher boasts an eight-layer video effects engine, a 40-channel digital audio mixer, integrated PTZ camera control and pioneering cue and automation features. The V-160 HD combines the hardware reliability of live switchers with the livestream capabilities of computer-based systems, making it the ideal equipment for hybrid events. With its comprehensive user interface, Roland's V-160HD enables easy-to-learn hands-on control by a single operator and an undisturbed, optimised workflow.

Portable switcher for hybrid events with extensive functions and connection options
Eight 1,080p HDMI inputs with frame rate conversion, including four inputs with real-time scalers
Eight 3G-SDI inputs with frame rate conversion
A total of seven outputs (SDI, HDMI and USB-C streaming)
Seven selectable output modes: programme, sub-programme, AUX, preview + three multi-view options
Digital 40-channel audio mixer with effects and signal processing
Video effects engine with eight layers
16 still image memory slots for screen recording or uploading BMP, JPEG and PNG image files via the alpha channel to the internal non-volatile memory
Powerful live automation with sequencing, macros and saved presets
PTZ control supports various simultaneously used brands and control protocols
Advanced device control via Bluetooth, USB, RS-232 and LAN
Remote control software available for iPad, macOS and Windows
Camera tally light: wireless or wired

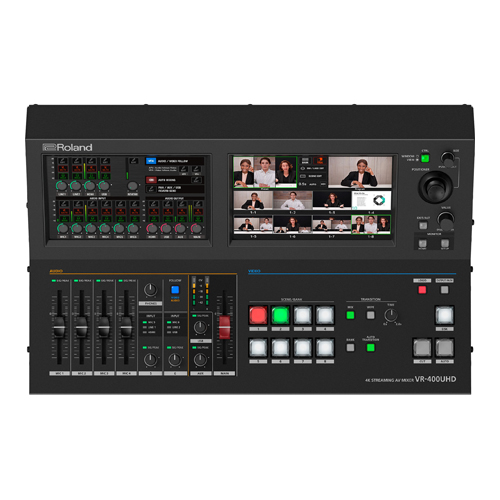

VR-400UHD - 4-channel 4K streaming AV mixer

Intuitive 4K workflow with two touchscreens

The VR-400UHD from Roland is a powerful and easy-to-use solution for complex productions at events or live streams. The two touchscreens are located directly next to each other, so that workflow control works quickly and smoothly even in hectic situations. For example, the AV mixer allows live video thumbnails to be displayed, composite video scenes to be switched and video routing functions to be called up. It has a wide range of integrated AV connections and always offers the best possible video quality thanks to full support for 4K streaming via HDMI and USB.

Scene function for creating and calling up complex video compositions
Combination of video weighting, audio mixing and USB streaming in one device
Simultaneous preview of up to 8 scenes
Save up to 64 scenes incl. zoom level, cropping and much more.
7 HDMI inputs
Integrated scaler in the HDMI inputs and outputs for the free combination of 4K/FHD, HDR/SDR and Rec.2020/Rec.709 formats
Digital 14-channel audio mixer with modern effects and signal processes

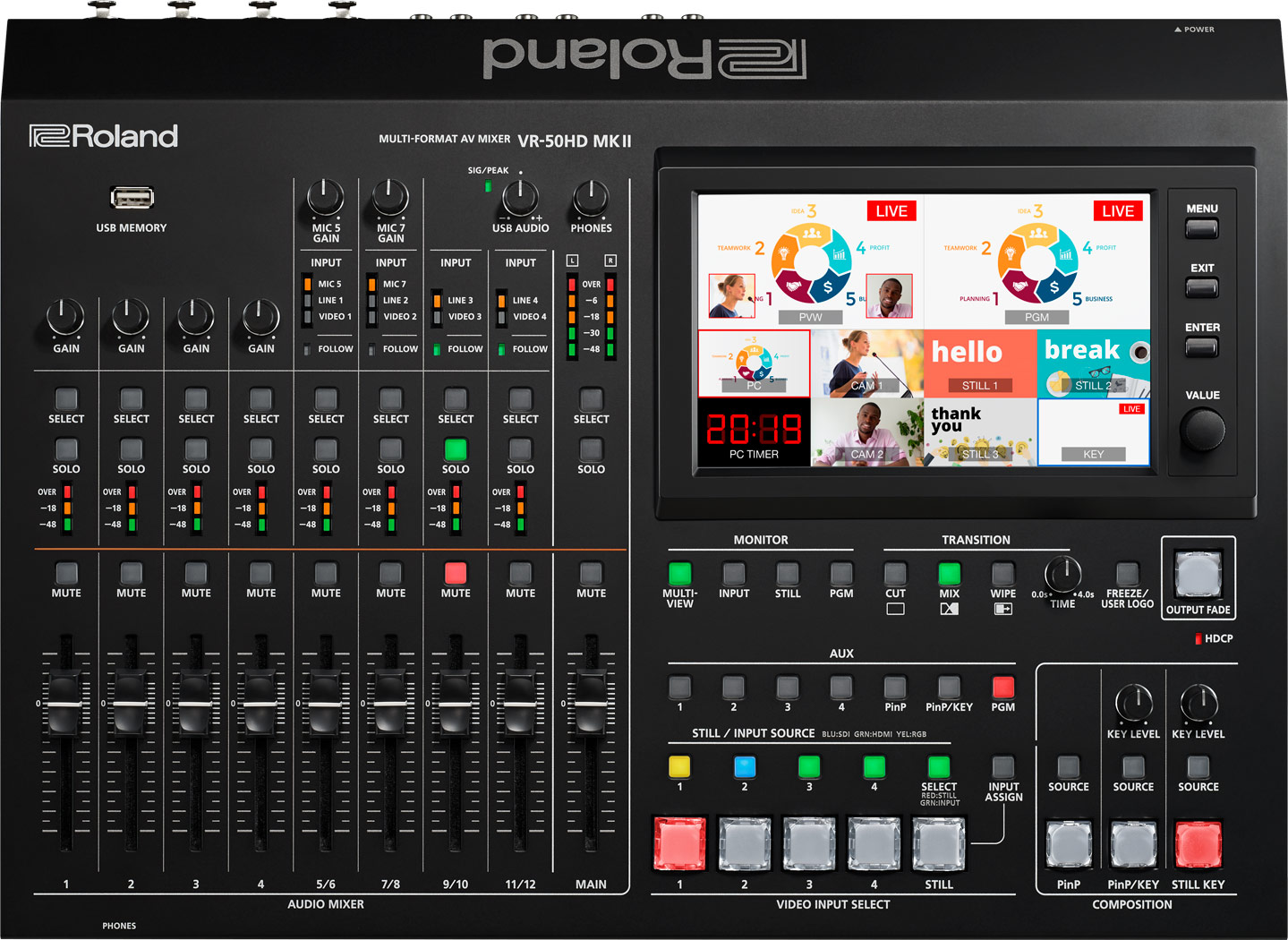

VR-50HD MKII - Multi-Format AV Mixer

All-in-one convenience based on user feedback extended for a variety of different events

The VR-50HD MK II is a completely self-contained AV solution whose all-in-one multi-format is based on direct feedback from numerous live event users and scores with a unique user experience. The AV mixer combines video switching, digital audio mixing, multi-viewer touchscreen control and USB AV streaming in one easy-to-use device. With its new productivity features, the VR-50HD MK II marks the next evolutionary step among Roland all-in-one AV mixers. The VR-50HD MK II can be conveniently operated by a single person and offers users extended connectivity options and enormous flexibility to cover a variety of different events with changing input and output requirements.

Automated audio mixing and video switching functions
12-channel digital audio mixer
High-quality audio preamplifiers and converters
Independent aux output
Buttons for aux assignments
Twelve inputs and four channels
Direct LAN control of selected PTZ cameras from JVC and Panasonic
Multi-view touchscreen for displaying and assigning inputs, displaying up to four still images, performing preview or programme functions and much more
Four-layer composition and storable still images
User interface for fast, smooth operation
USB 3.0 streaming

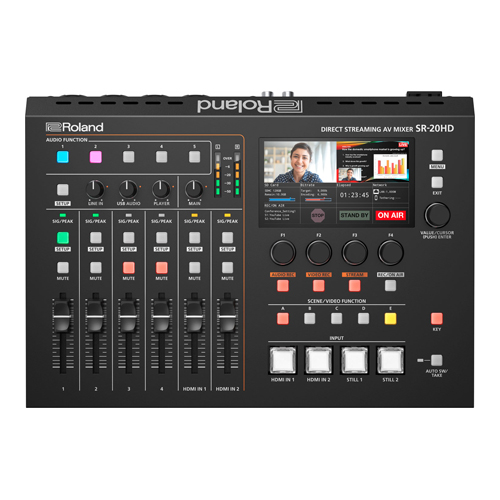

SR-20HD - Direct streaming AV mixer

The all-in-one video mixer for switching and streaming

The SR-20HD is powerful, portable and easy to use. The standalone solution does not require a computer and has all the essential functions for switching and streaming AV content without users needing much prior knowledge. The two HDMI inputs can be used to connect the most important video sources and computers with presentation software. There is also a USB video input for connecting a Roland UVC device or a webcam. This AV mixer also has a variety of audio inputs.

Integrated encoder enables the transmission of up to two simultaneous live streams with up to 1080p/60 FPS each
Adaptive bitrate function reduces frozen images and interruptions
Safety delay function so that no unexpected images are transmitted
Direct recording of streams on an SDXC card
Playing sound effects, still images and video sources from an SDXC card
LCD screen for checking the video inputs/outputs and transmission status in real time
High-quality audio mixer with eight input channels for microphones and line-level devices

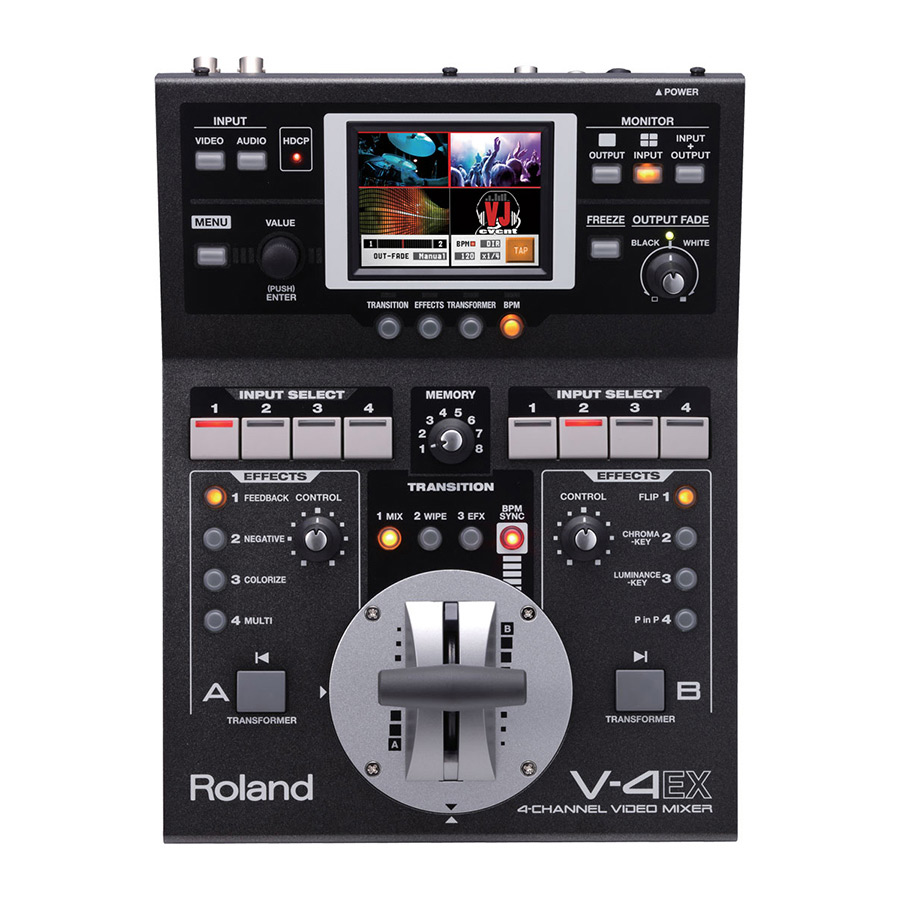

V-4EX - Digital Video Mixer

All-in-one solution for simple video and web streaming

The 4-channel video mixer V-4EX has versatile functions which, together with its compact design, make it the ideal companion for a wide variety of events. It is suitable for both portable use and permanent installation. The device has a selection of powerful video effects. These can be easily controlled via controls in the user interface. Roland's solution combines a video switcher, audio embedding, a preview monitor and a streaming-ready USB output in a single device. A total of four inputs process composite (BNC) or HDMI signals, RGB/component or S-video signals. The V-4EX includes audio embedding with an in-built audio mixer. Up to 4 frames of delay can be set in order to ‘lip-sync’ the audio material to the video.

USB streaming output for web streaming
Multiviewer with touch operation
Audio embedding
PGM and PVW outputs
Integrated frame synchroniser on all inputs
Scaler on channel 4 and output
259 fades and 148 effects
Audio mixer and delay up to 4 frames

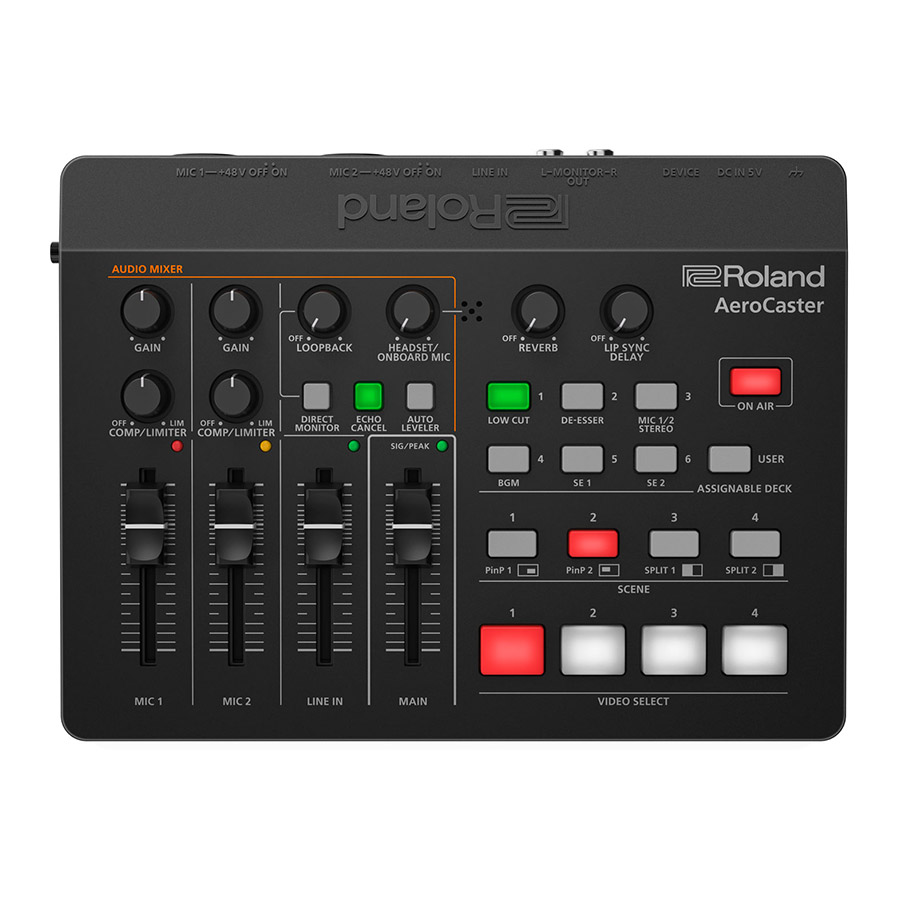

VRC-01 - AeroCaster AV mixer and live streaming system

Multi-camera setup for live streams with mobile devices

The AeroCaster system from Roland frees users from complicated setups, as all you need is several mobile devices such as smartphones and tablets to wirelessly transmit live streams with professional quality via streaming platforms. In total, video signals from up to 5 different sources can be used. The VRC-01 can be used to create up to 30 scene presets with text overlays, graphics, picture-in-picture windows or split-screen views. The AeroCaster system includes the AeroCaster LIVE app for iPad, the AeroCaster VRC-01 hardware control surface, which also acts as an audio interface, and the AeroCaster Camera app for iOS and Android mobile devices. In addition, content from computers or mobile devices can be used and shared via BYOD applications.

Powerful wireless production solution with hardware user interface/audio interface and fully-fledged iPad app
Wireless screen sharing from computers and mobile devices via Google Chrome
Switch between cameras, media and scenes with a variety of transition effects
Media pool for the integration of video, audio, photos and graphics from your own iPad (or Android tablet)
Intuitive hardware control interface and audio interface with two XLR inputs, 3.5 mm stereo input and headphone and monitor outputs
Stream content directly to YouTube, Facebook Live, Twitch and RTMP channels
Save and recall 30 scenes with titles, graphics and picture-in-picture windows
One-touch scene change

Roland BRIDGE CAST - All-in-one audio streaming & audio mixer for gamers

Professional sounds for professional gamers

The Roland BRIDGE CAST - All-in-One Audio Streaming & Audio Mixer is the ultimate solution for creating high-quality live stream audio and taking gaming sound to the next level. This customisable desktop hub offers a host of powerful features including parallel sound mixing, vocal transformer effects, music playback, sound effects and support for professional microphones and headphones. Even in the most heated battles, the BRIDGE CAST delivers epic sound that enhances gameplay in every way.

ROLAND BRIDGE CAST - All-in-one audio streaming & audio mixer for gamers

Professional audio streaming interface and mixer for online gamers
Powerful 32-bit hardware DSP allows the utilisation of all computer resources for gaming and streaming
Create separate mixes for you and your online audience via the two audio buses
High-quality vocal processing: EQ, compressor, noise cancellation, de-esser and reverb
USB-C connection for Windows and Mac computers and mobile devices
Compatible with Sony PlayStation game console (certain audio formats may not be supported)
High-quality XLR microphone preamplifier with phantom power for professional microphones
Professional headphone connection with high sensitivity and support for headsets or inline microphones
Hands-on controls and buttons for quick sound control
Robust and compact design with customisable front panel and adjustable colours for the controller LEDs
Voice changer effects from the Roland VT series
Optimise your gaming performance with five customisable game EQ presets
Delay function for synchronising audio and video signals (if required)
AUX input for playing audio signals via a smartphone or other external device
BRIDGE CAST app for customising settings and saving hardware configurations
Integration of licence-free music in streams via the BRIDGE CAST app and the Roland Cloud

AV Streaming Mixer from Roland Pro A/V
